Optional accessories for Vscan Air and details on power plugs
Optional Accessories

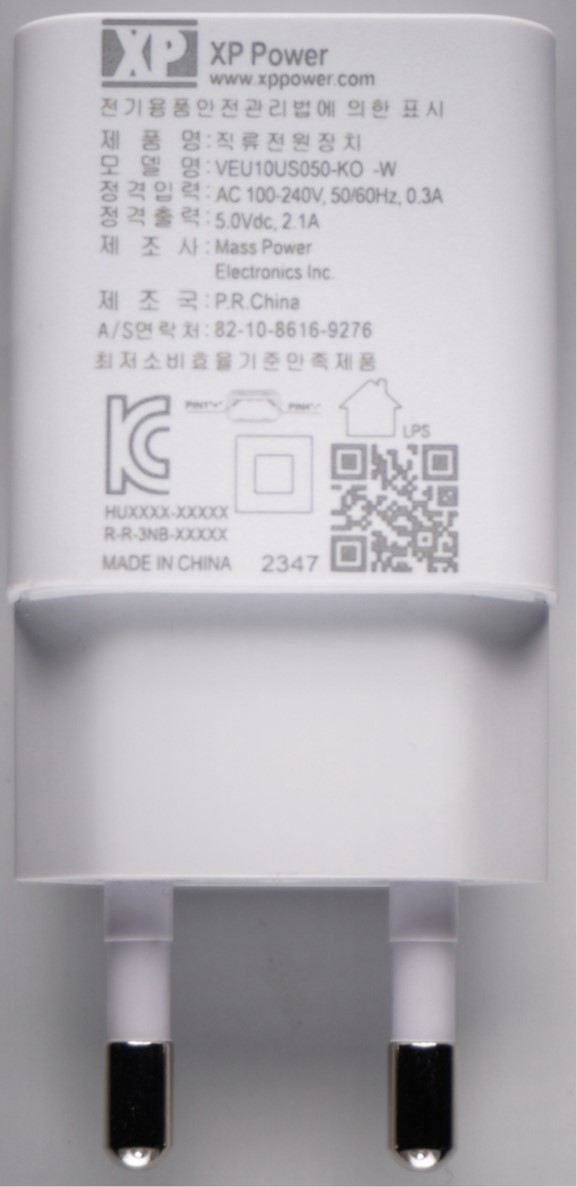

Vscan Air AC Adapters
The AC adapter power plug requirement for the country or region is shipped together with the Vscan Air probe according to purchase order.
International AC Adapter
1. Type C - Europe, Turkey, Korea, Indonesia, Philippines, Thailand, Vietnam, Israel, Russia, Brazil, Chile, Egypt
2. Type A - USA, Canada, Japan, Taiwan, Mexico
3. Type G - United Kingdom, Hong Kong, Ireland, Malta, Cyprus, Malaysia, Singapore, UAE, Saudi Arabia
4. Type I - Australia, New Zealand, China, Argentina
Vscan Air AC Adapter - multiplug
Vscan Air AC Multiplug Adapter
NOTE: The multiplug adapter shown above is included for illustration purpose only. The colors may be different and the label content may not represent the current version being used.Vscan Air Charger
Anker PowerWave charging pad
trophon® Wireless Ultrasound Probe Holder
Product dimensions:
- Height 47.6mm
- Length 260.5mm
- Width 81.2mm
- Weight: 32.5g (approx.)
Roll Stand
Tablet Roll Stand
- 21"/53.3 cm base with 10 lb/4.5 kg counterweight
- 53.5"/135.9 cm post - 1.25"/3.2 cm diameter
- 6"/15.2 cm basket with cable management hooks
- Maximum load: 12 lb / 5.4 kg
- Handle
Optional Tablet Holder
- Minimum Tablet Width: 6.25" / 15.9 cm
- Maximum Tablet Width: 8.1” / 20.6 cm
- Maximum Tablet Depth: 0.875" / 2.2 cm
- Maximum Length (with additional included supports): 10.25" / 26 cm
- Includes Slide-In Mounting Adapter
- Rubber coated tips hold tablet firm and stable
- Easy access grip knobs located on the back of the cradle for quick release of tablet
- Full access to all ports
- Mounts in portrait or landscape orientation
- Product weight: 0.8 lb / 0.36 kg
Products mentioned in this material may be subject to government regulation and may not be available in all countries. Please check with your local GE representative for details.
Disclaimer: The information herein is not intended to replace the product’s User Manual. Please consult the User Manual for comprehensive information and cautionary guidance about the product’s operation and use.
