Vscan Air Artificial Intelligence (AI) tools are optional and can be enabled if purchased. AI tools are not available in all markets.
The AI icon (seen below) when shown on a preset or tool, indicates that artificial Intelligence is being utilized.
Artificial Intelligence icon
Cardiac Guidance
Cardiac guidance and Interpretation by Caption AI includes Caption Guidance and Caption Interpretation AutoEF software.
Cardiac guidance is a real-time AI software that enables the user to obtain different cardiac views through text and icon guidance, and reference images. Cardiac guidance also includes an automatic diagnostic-quality video recording. Cardiac guidance includes automatic saving of videos to the image gallery.
Cardiac interpretation is an automated ejection fraction software that provides an estimated ejection fraction stated as a percentage, along with an indication of the confidence regarding that estimate. The calculation of the estimated ejection fraction is automated based on the algorithm’s processing of the echocardiography images.
The Auto-box placement feature is a new capability within the Cardiac Guidance software that assists medical professionals in the acquisition of the following Color Doppler sub-views: Parasternal Long-Axis at the Aortic Valve (PLAX-AV Color), Parasternal Long-Axis at the Mitral Valve (PLAX-MV Color), Parasternal Long-Axis at the Aortic and Mitral Valves (PLAX-AV/ MV Color), Apical 4- Chamber at the Mitral Valve (AP4-MV Color), Apical 4-Chamber at the Tricuspid Valve (AP4-TV Color), and Apical 5-Chamber at the Aortic Valve (AP5-AV Color). Auto-box placement estimates ideal placement of the color box in for a given color sub-view, while color mode is active. A reference, ideal color sub-view image framing and box placement is provided for the operator to replicate. The AI does not assess the diagnostic quality of the Color Doppler information itself, and the placement of the color box is not AI-driven. Operators must have at least basic training and understanding of Color Doppler ultrasound and are responsible for ensuring that the color box is properly sized and positioned and that the resulting image meets diagnostic standards for Color Doppler
NOTE: The Auto-box placement does not assess the diagnostic quality of the color Doppler information itself, and the placement of the color box is not AI-driven. Please check Vscan Air and Caption AI - Compatible Display Devices on Vscan Air Customer support center to access the most recent list of validated display devices For instructions, warnings, labeling and other support information about the cardiac guidance tool, refer to the Caption AI Operator’s Manual

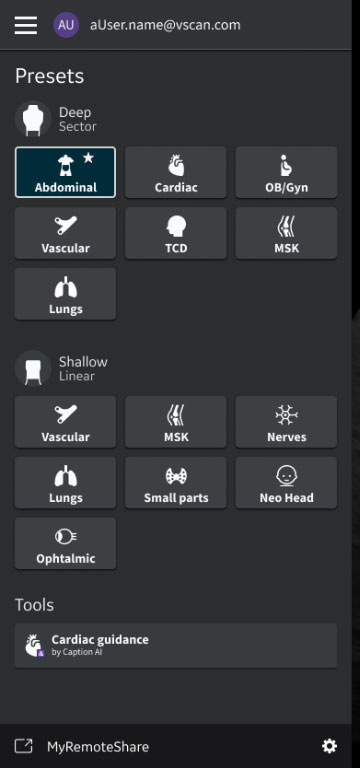

Accessing the Cardiac guidance tool:
1. Open the presets menu.
2. Tap Cardiac guidance.

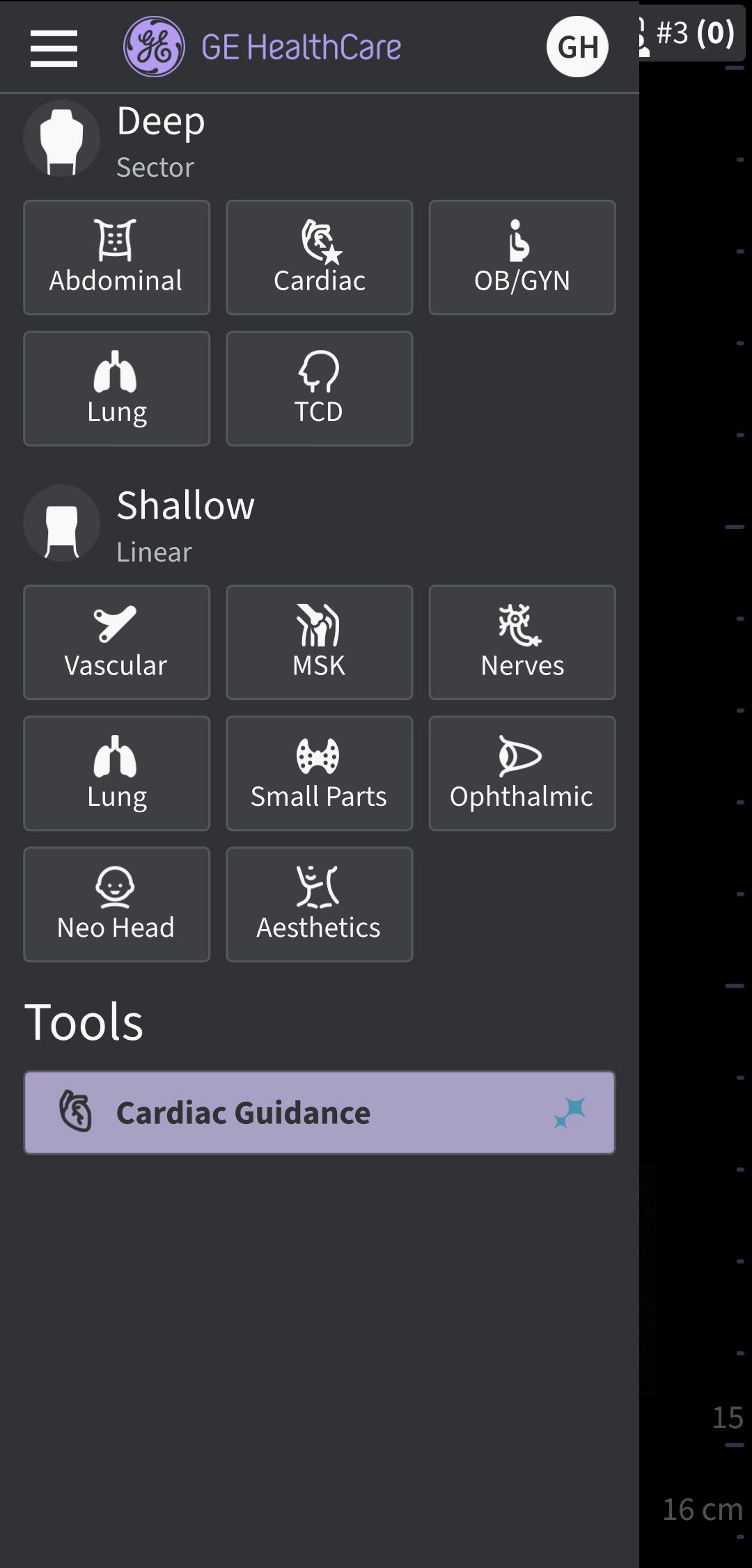

Accessing Cardiac guidance
NOTE: *Cardiac guidance is only visible in the Tools menu if it is purchased and is supported by the Vscan Air SL only. *Cardiac guidance is not available in Vscan Air Guest mode. *Caption AI Echocardiography Guidance Software is subject to government regulation and may not be available in all countries. Contact your local GE HealthCare representative for details.

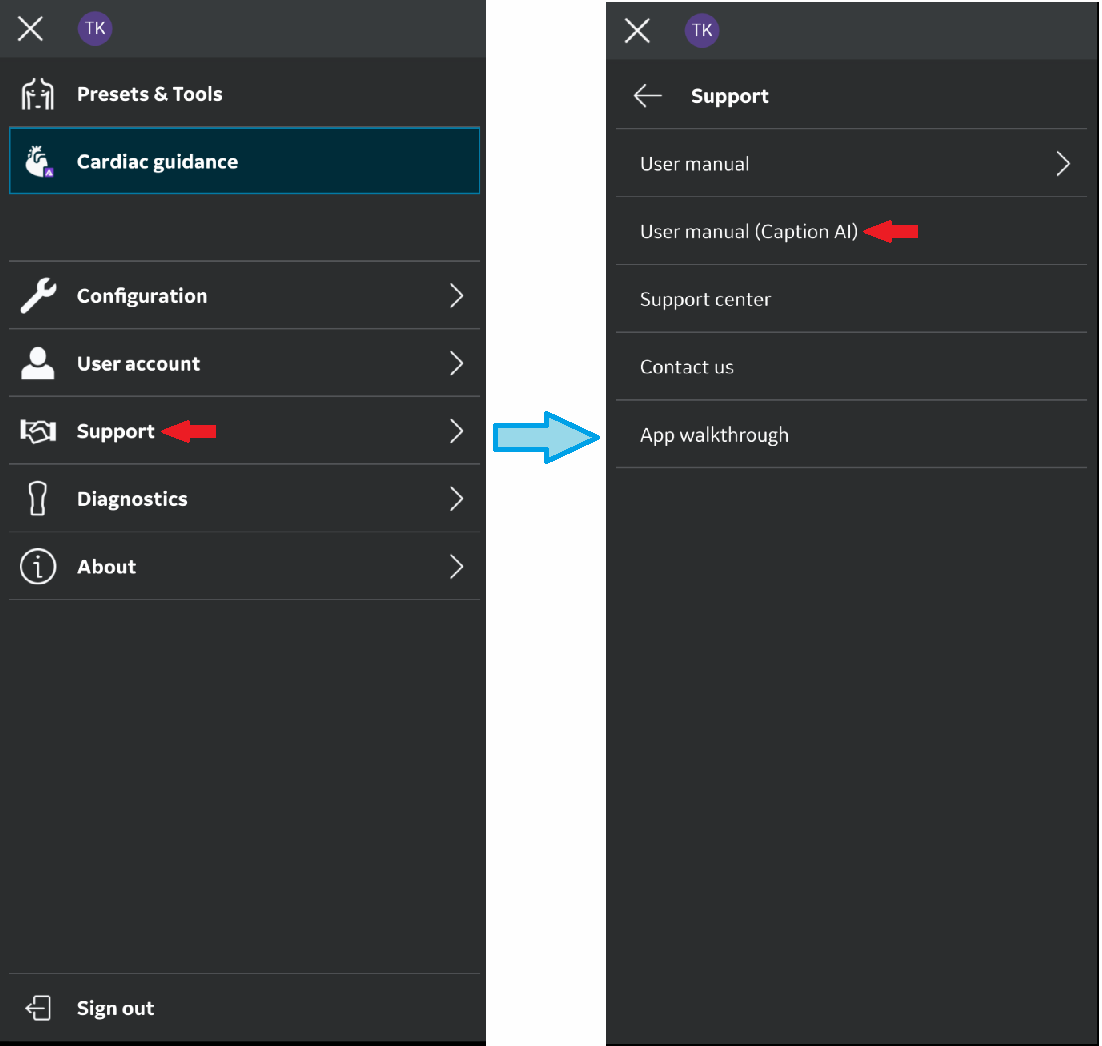

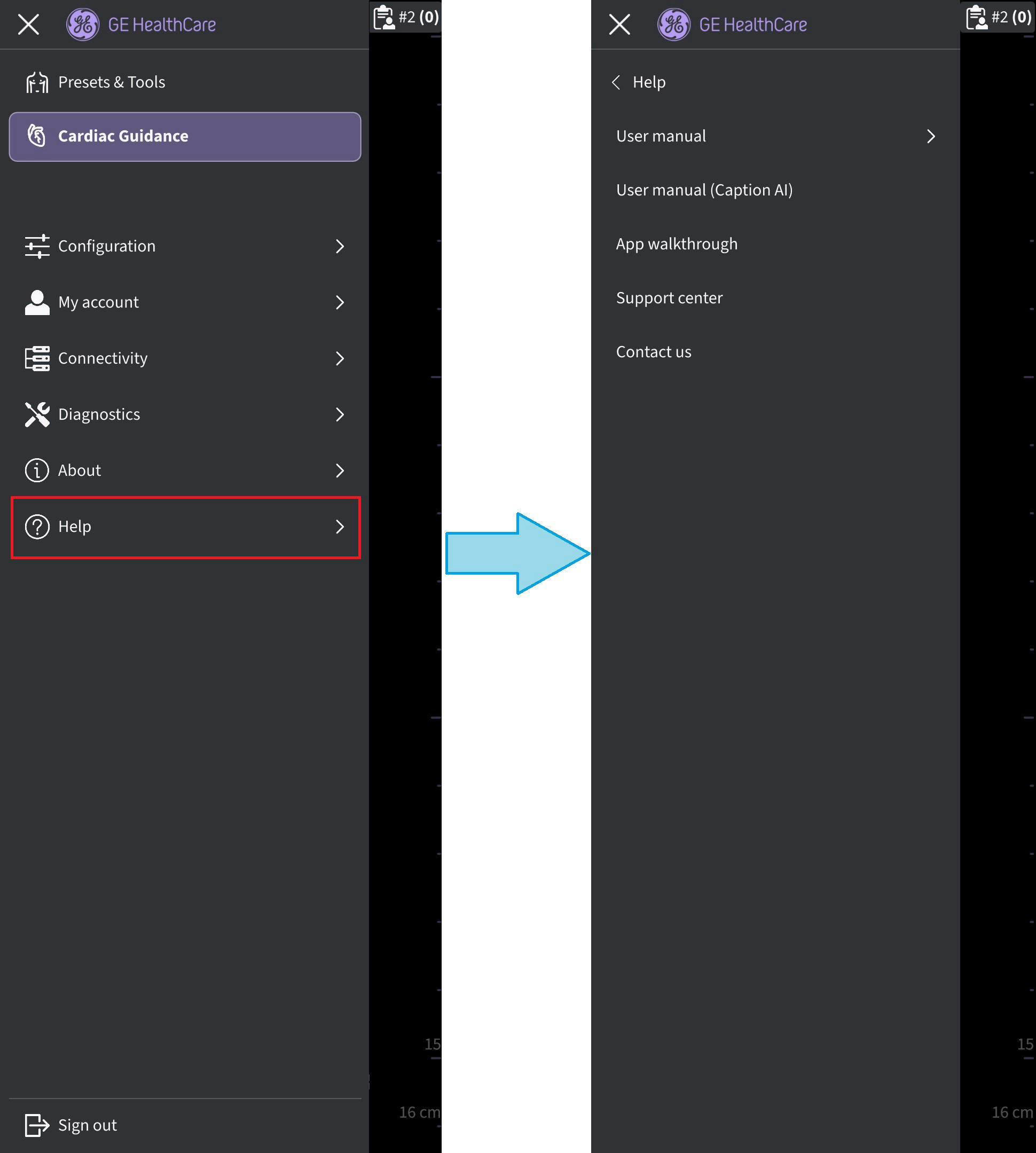

To access the electronic Caption AI Operator’s Manual in the Vscan Air app:
1. Tap the menu icon in the top left corner.
2. Tap Support -> User manual (Caption AI).
To access your stored images, swipe right to left or tap the Exams icon in the top right corner of the screen
The image gallery videos and AutoEF reports stored via selected views in Cardiac guidance will be labeled indicating the view captured.

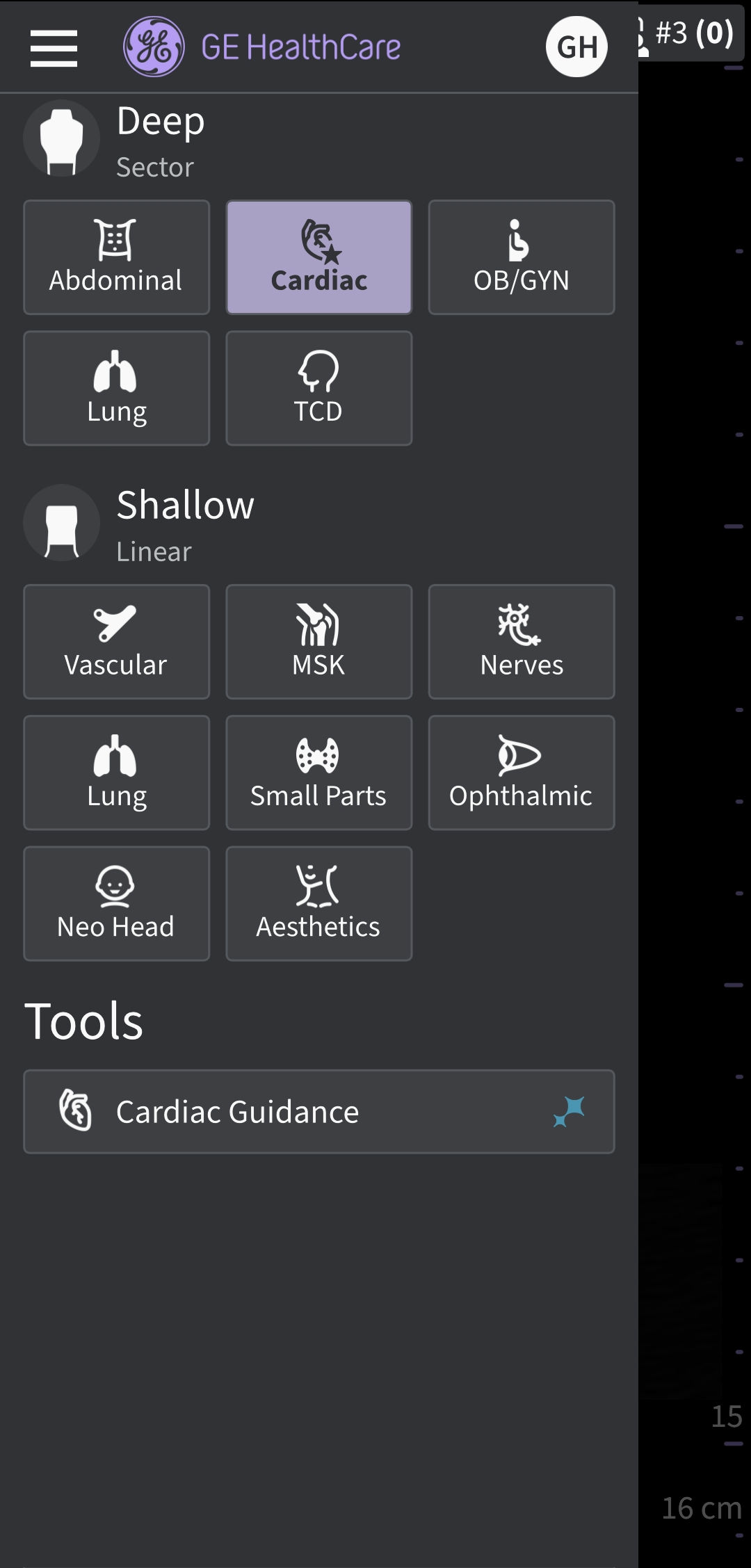

Cardiac guidance selected as default Preset/Tool

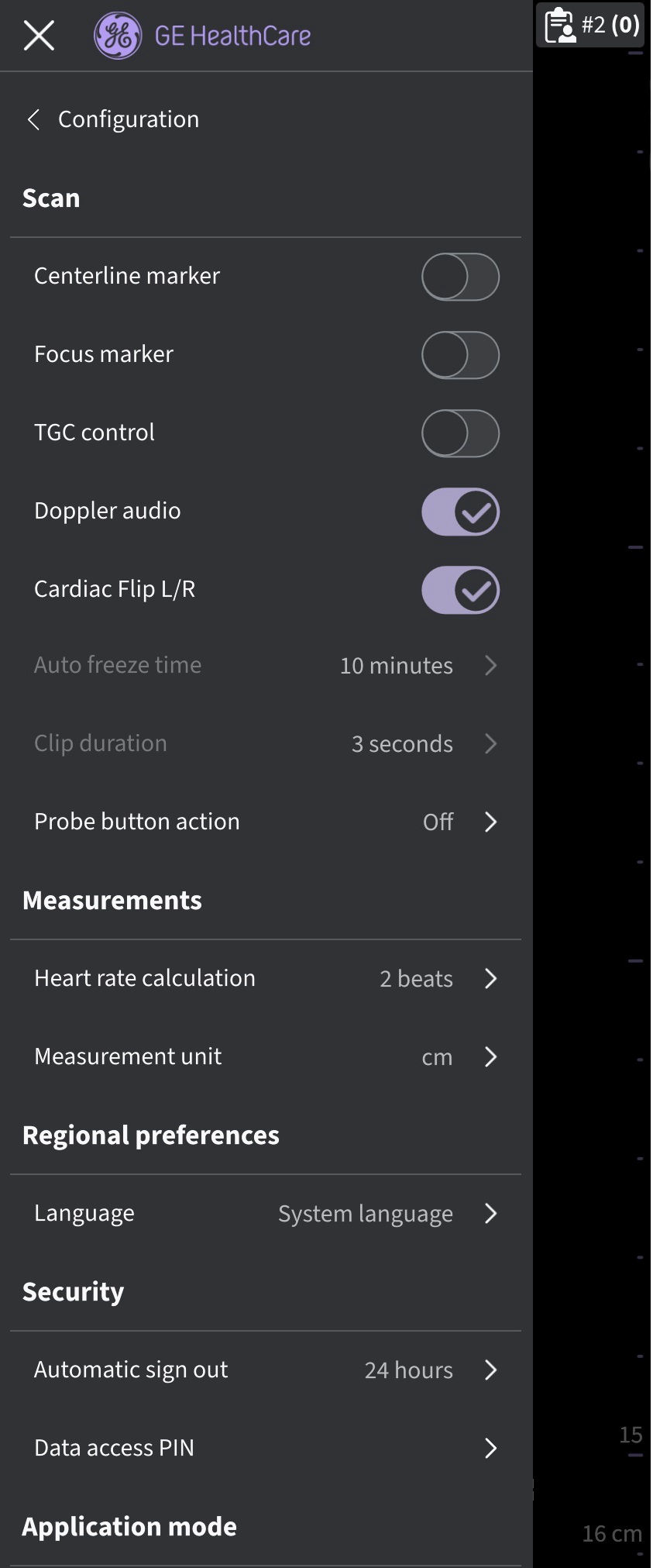

Clip duration and Auto freeze time disabled
NOTE: The Clip duration (3 seconds) and Auto freeze time (10 minutes) configuration is disabled when Cardiac Guidance is selected. See the Caption AI Operator’s Manual.
Disclaimer: The information herein is not intended to replace the product’s User Manual. Please consult the User Manual for comprehensive information and cautionary guidance about the product’s operation and use
