Color Flow (Color Doppler)




The Color flow (Color Doppler) mode is adding color coded qualitative information concerning the relative velocity (in m/s) and direction of fluid motion within the black and white image.

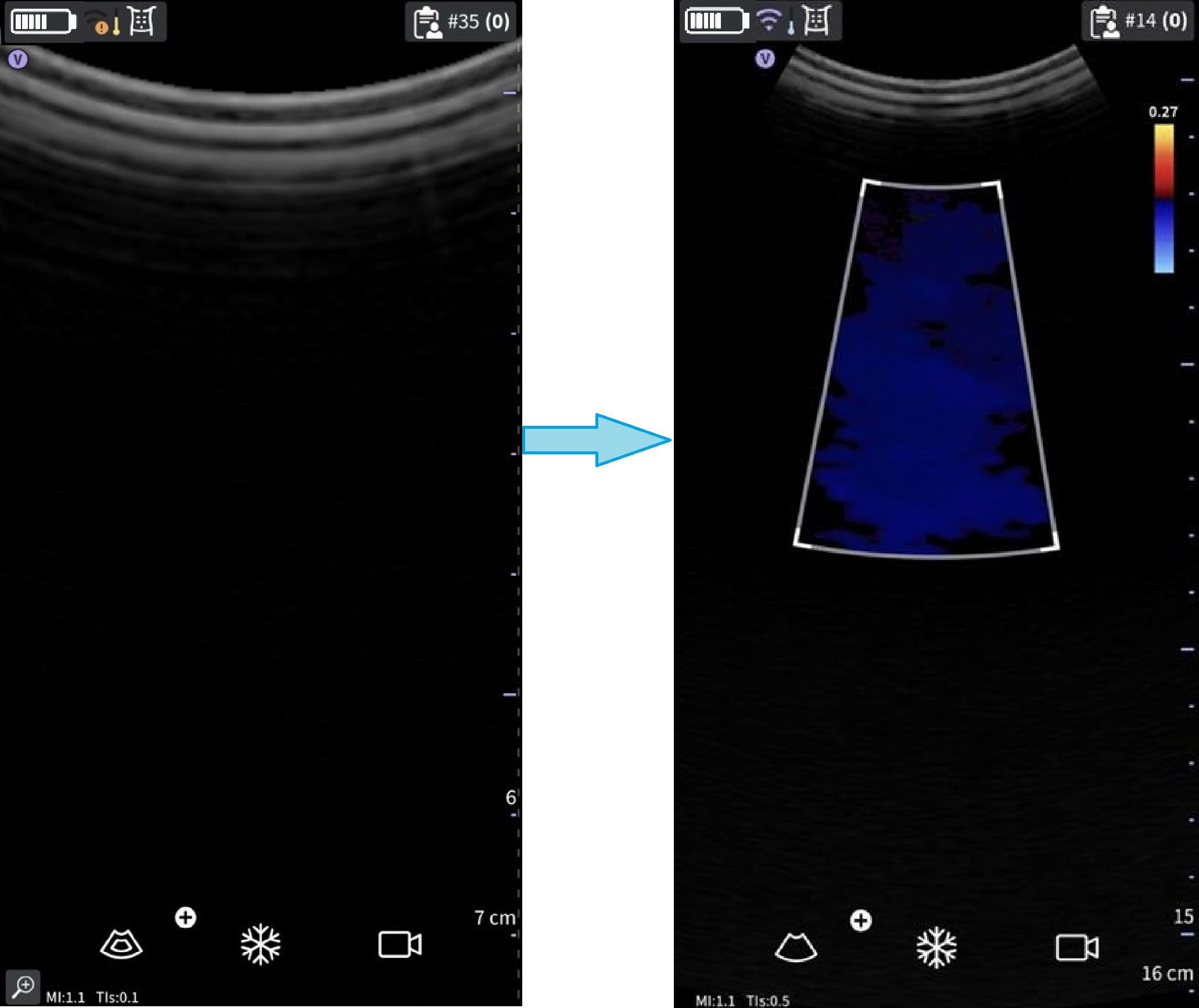

1. Press the Color icon.

A color flow area displays on top of the black and white image.

Color icon



2. Drag the color Region of Interest (ROI) to the desired area. The color ROI outline becomes blue when active.


Disclaimer: The information herein is not intended to replace the product’s User Manual. Please consult the User Manual for comprehensive information and cautionary guidance about the product’s operation and use.
