Probe Orientation

Vscan Air CL is provided with an orientation mark on both the transducer heads. This mark is used to identify the side of the Vscan Air CL probe corresponding to the side of the image having the orientation V mark on the scanning screen.

A steady blue LED light on one end of the Vscan Air CL indicates which transducer head is active.

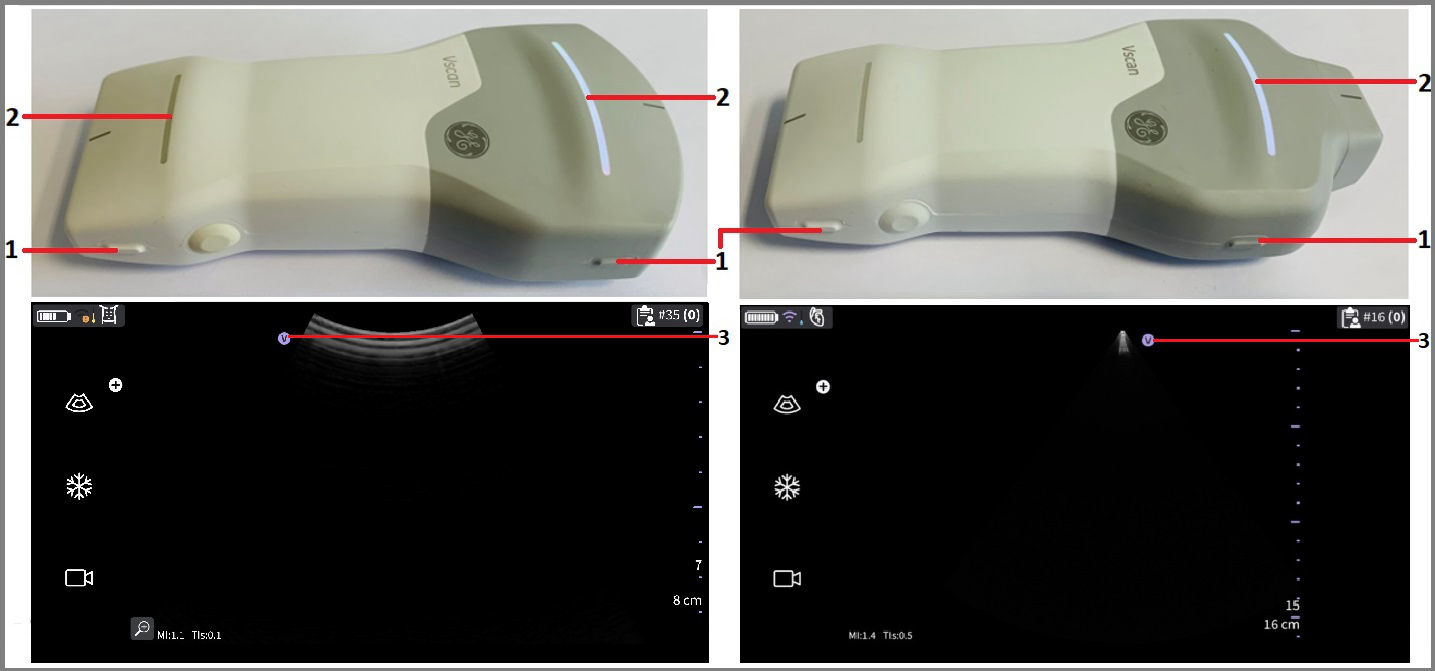

Vscan Air CL Orientation

  1. Orientation marking on Vscan Air CL
  2. LED light
  3. Orientation marking on screen



Disclaimer: The information herein is not intended to replace the product’s User Manual. Please consult the User Manual for comprehensive information and cautionary guidance about the product’s operation and use.
