Disclaimer: The information herein is not intended to replace the product’s User Manual. Please consult the User Manual for comprehensive information and cautionary guidance about the product’s operation and use.




Vscan Air app enables two types of measurements with the Vscan Air CL probe - distance and ellipse, on frozen images in both black and white and color imaging. Up to four distance measurements can be performed on an image. Measurements can be done during image review or on recalled stored images.


To perform a distance measurement:

1. On a frozen image, press Measure.

The measurement calipers displays. 'Distance' and 'Ellipse' measurements options are displayed with the distance calipers being activated by default.

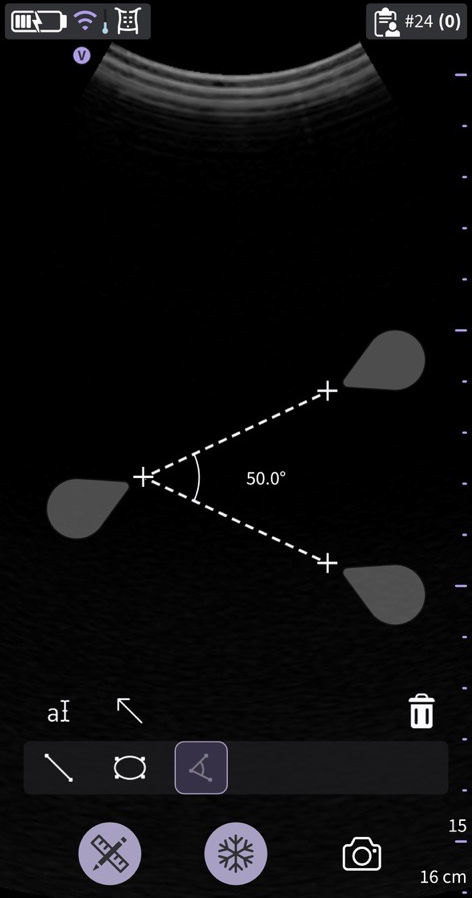

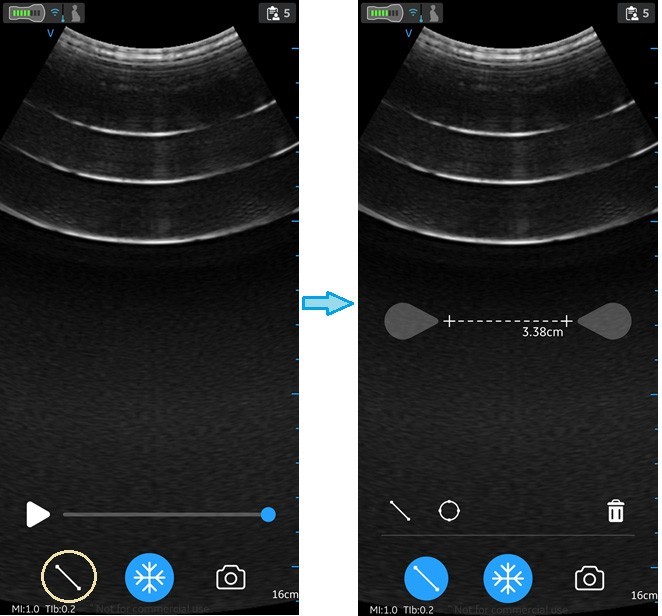

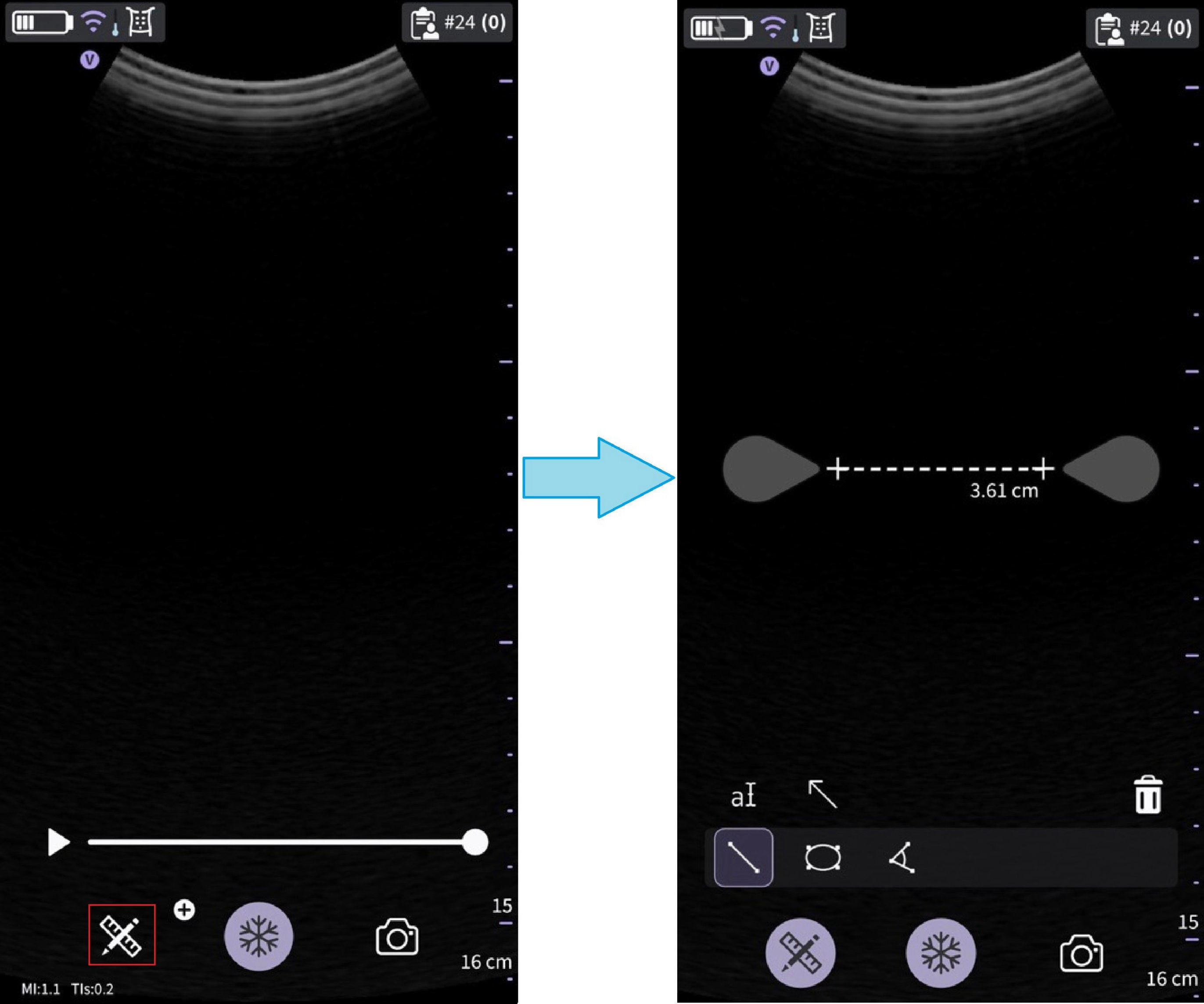

Select measurement



2. Drag to position the calipers to obtain the desired measurement.

3. To store the image with a measurement, press store.


To make additional measurements:

1. Press the distance measurement icon again to make additional measurements on the displayed image.

Up to 4 distance measurements can be made on a single image.


To delete a distance measurement:

1. Select the measurement you wish to delete.

2. Press ‘Bin‘ icon to delete the selected measurement.


To perform an ellipse measurement:

1. On a frozen image, press the ‘Measure’ button. Select the ellipse icon to change the measurement type from 'Distance' to 'Ellipse.

The measurement calipers displays.

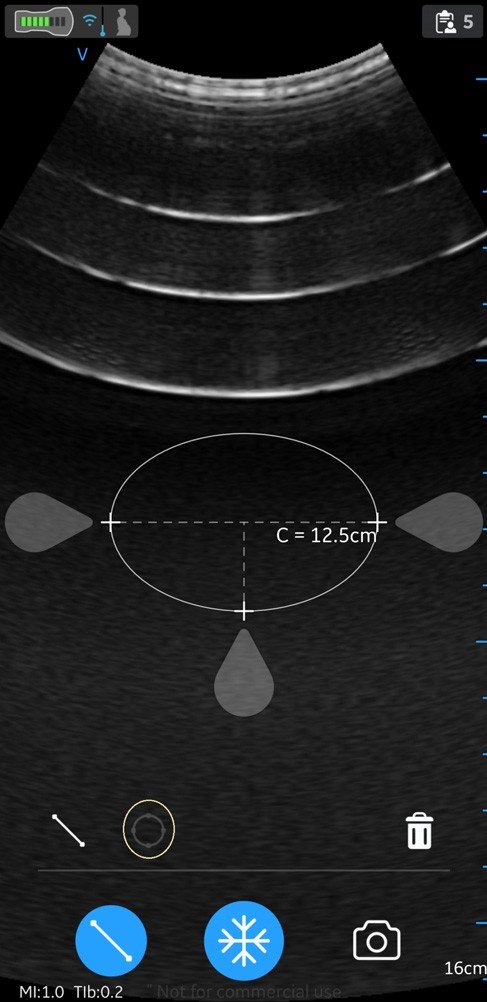

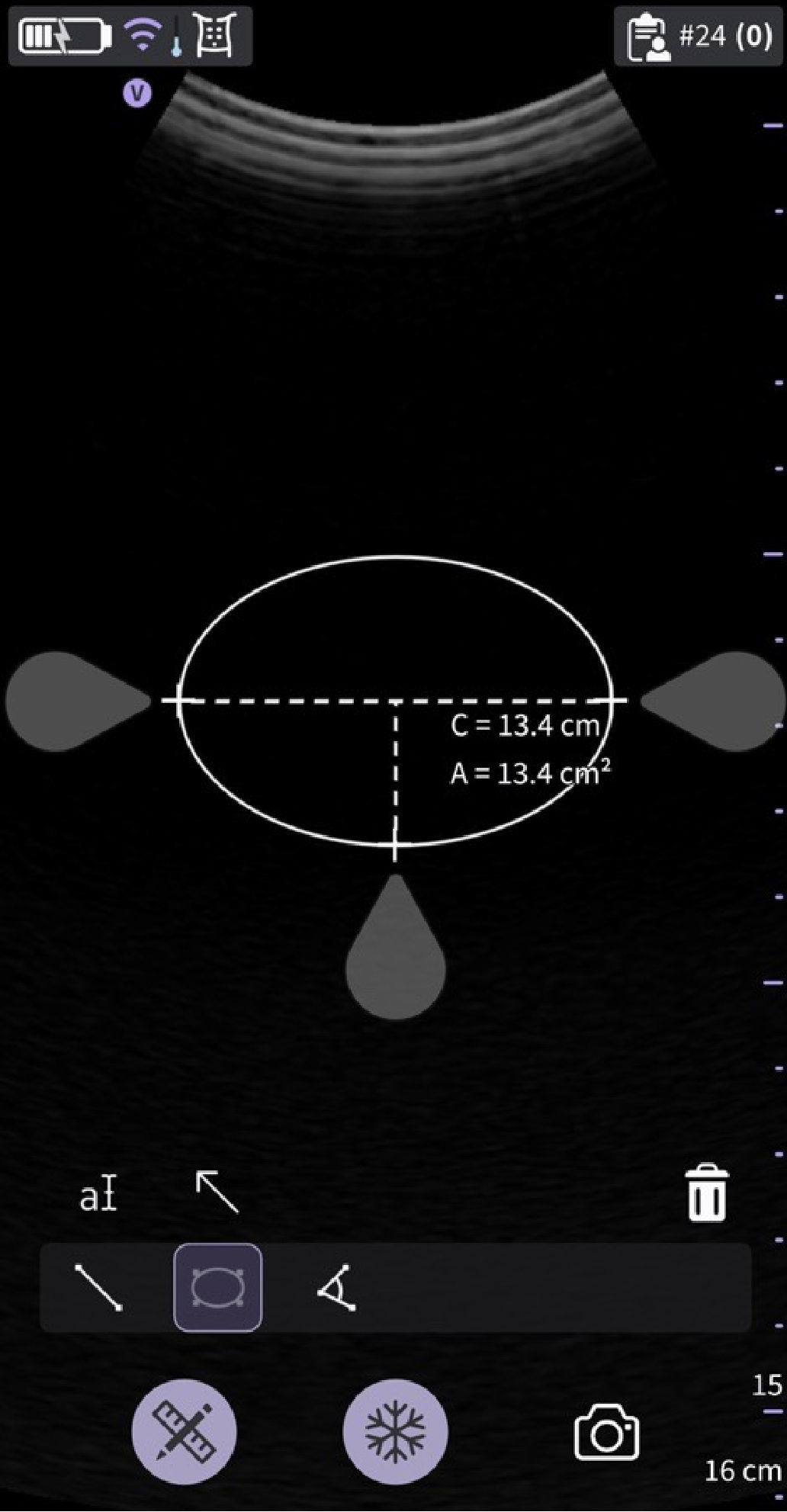

 Select Ellipse measurement



2. Drag to position the calipers to obtain the desired measurement.

3. To store the image with a measurement, press store.

NOTE: Only a single ellipse measurement can be performed on the displayed image.


To delete an ellipse measurement:

1. Select the measurement.

2. Press the ‘Bin’ icon to delete the selected measurement.

To exit the Measure mode select the 'Measure‘ icon or press ‘Freeze’ icon or switch frame with Video buffer slider.
