Storage Server

Storage server is the DICOM image server that receives and stores exam data from Vscan Air app.



Commitment Server

Commitment Server sends confirmation to the Vscan Air app when the Storage Server successfully receives and stores the exam data.


Auto Delete

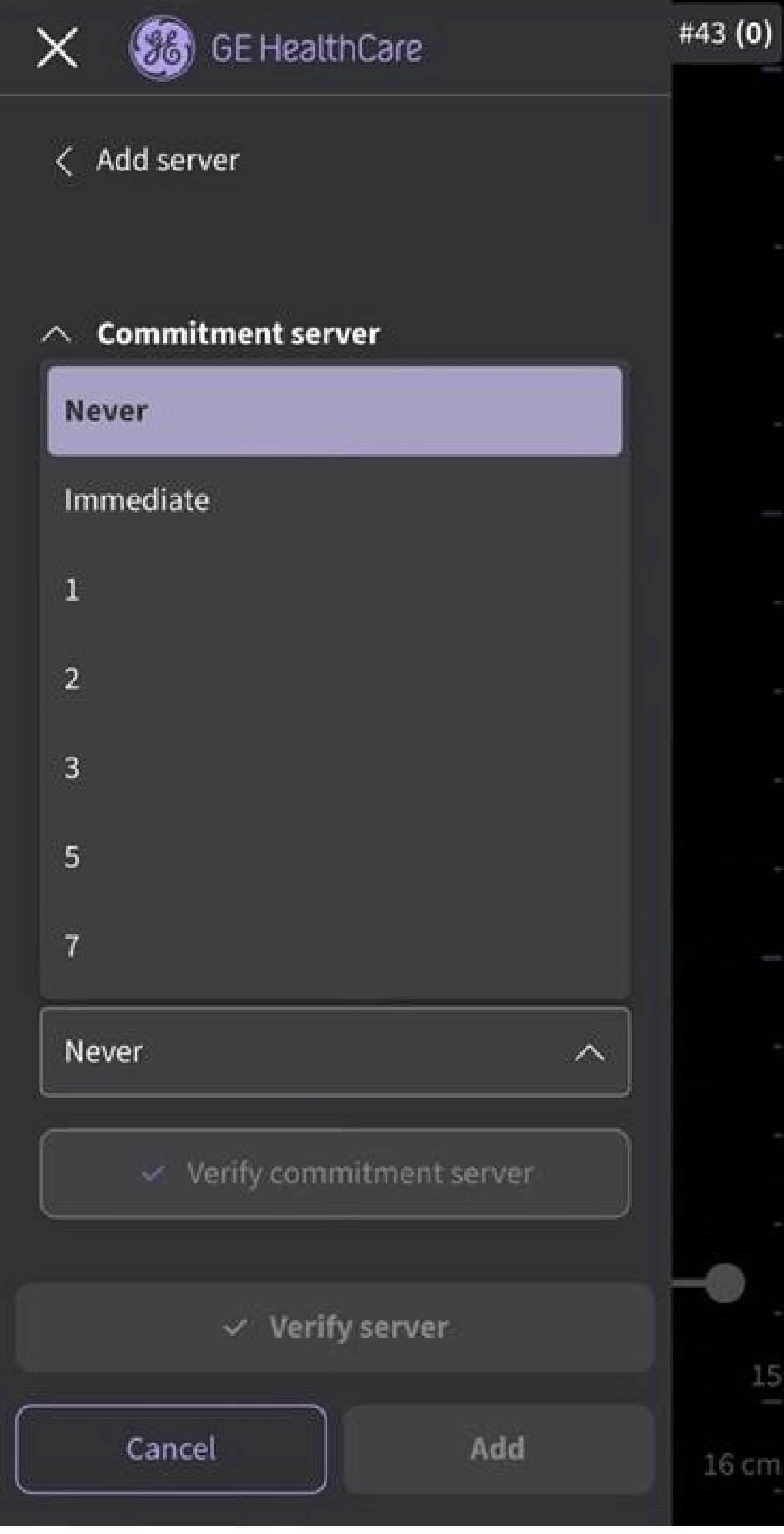

While configuring a DICOM Image Server (Storage Server), if you have enabled “Auto Delete” functionality, the exam data will be deleted automatically from the display device after exporting it to specified DICOM Image Server.

To enable “Auto Delete” functionality, follow the steps below:

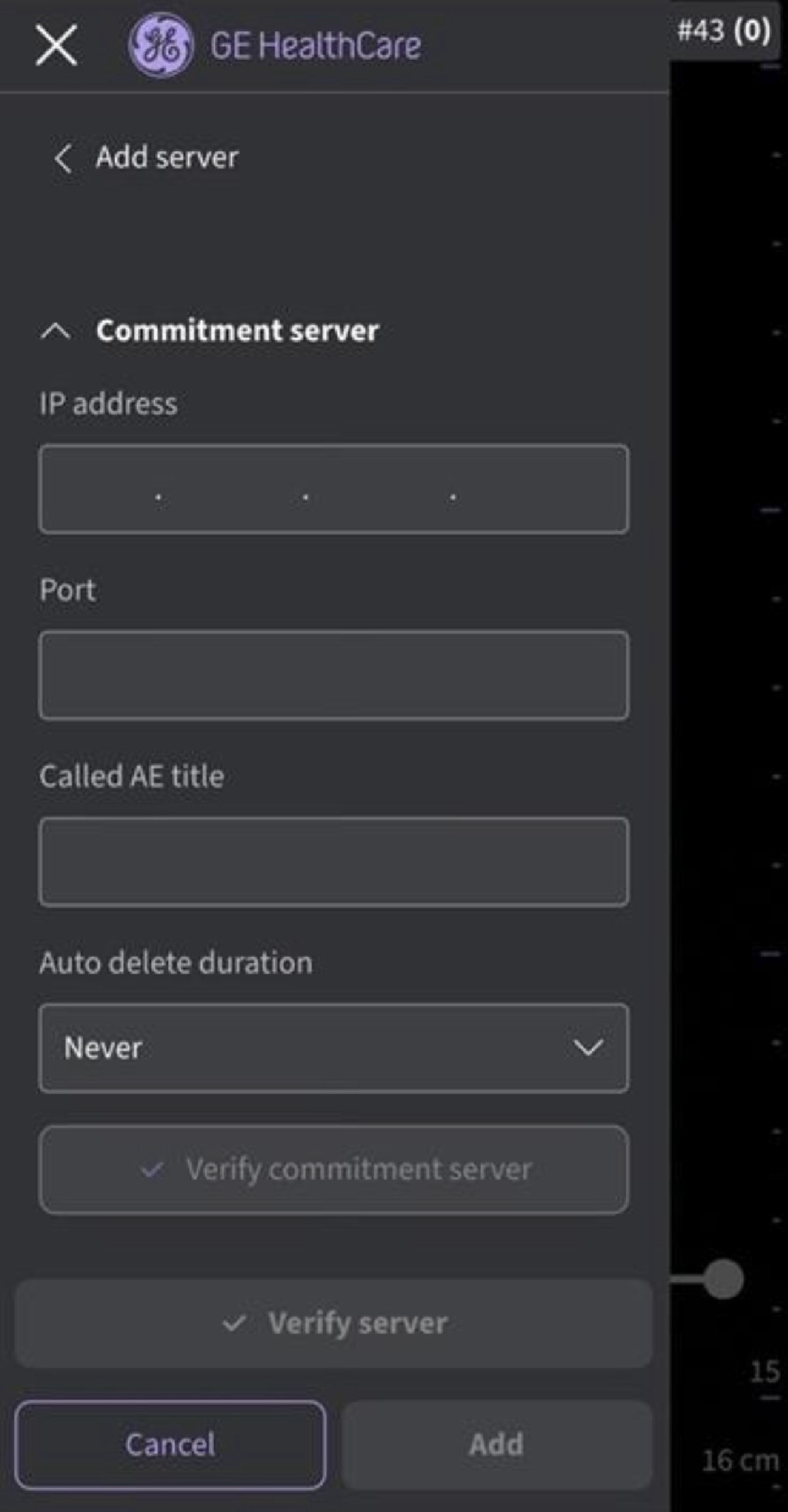

  1. While configuring the DICOM Image Server, tap on the Commitment Server drop-down button. See ‘‘Configure DICOM Image Server"  for more information.
  2.  Enter the commitment server details in the respective fields on the Commitment Server screen.
  3. Press Verify Commitment Server button to verify communication with the commitment server.

“Verify server succeed” pop-up message displays if the communication with the server is established successfully.

If communication fails, check the server settings and make necessary corrections.


Disclaimer: The information herein is not intended to replace the product’s User Manual. Please consult the User Manual for comprehensive information and cautionary guidance about the product’s operation and use.
